Mimpex@RPM - Xiamen RPM Imp.&Exp. Co.Ltd.

       Mimpex@RPM supplies CNC Milling Machines, Made in China, Good Price/Performances Ratio. Our factory is a leading domestic milling solution provider, established in March 2018. It covers an area of 3 thousand square meters and has a registered capital of 8 million RMB. It is located in Xiamen, a special economic zone in China, and it is engaged in the development, manufacturing and slaes of CNC high-tech series CNC Milling Machines which are widely used in aviation, automobile, electronics, precision molds and mechanical parts processing industries. Facing the new era, our factory will uphold the firm belief of "professionalism, innovation, quality, and service", and use the most advanced RENISHAW BALL BAR measuring instruments to test various accuracy to ensure excellent quality of CNC Milling Machines. Insist on technological innovation and constantly creating value for customers, we are committed to manufacturing high-quality and high-tech CNC Milling Machines that meet the production needs of global customers. Our company's management and R&D technical teams are all professionals in the milling industry from Germany, Japan, and Taiwan. Our CNC Milling Machines are exported to European and Asian countries, also covering domesitc cities like Beijing, Shanghai, Chongqing, and provinces like Fujian, Jiangsu, Zhejiang, Guangdong in China. Our factory will continue to be committed to being a professional milling solution provider to cope with ever-changing challenges.

    • Bed Casting
      The main basic parts of the machine tool such as the bed, column, saddle, workbench and headstock are all made of high-grade cast iron, with a large cross-sectional size design and optimized structure design, which greatly improves the rigidity and stability of the bed.
    • Screw/Line Rail
      The X/Y/Z axis adopts the Taiwan linear guide structure, and the three-way linear guide adopts the heavy preloading process, so that the machine tool not only takes into account the characteristics of high speed and high precision, but also has heavy cutting, excellent rigidity and excellent production efficiency.
    • Spindle Group
      It adopts Taiwan brand precision spindle unit with high rigidity structure. The spindle motor adopts AC servo technology. The spindle and motor pulley have been tested by a dynamic balancer to ensure the accuracy and life of the spindle.
    • Control System
      Standard FANUC and Mitsubishi CNC systems have the best processing efficiency and effect.
    • Tool Library
      Taiwan Zhenshang, Okada 24T tool magazine, automatic tool change system.

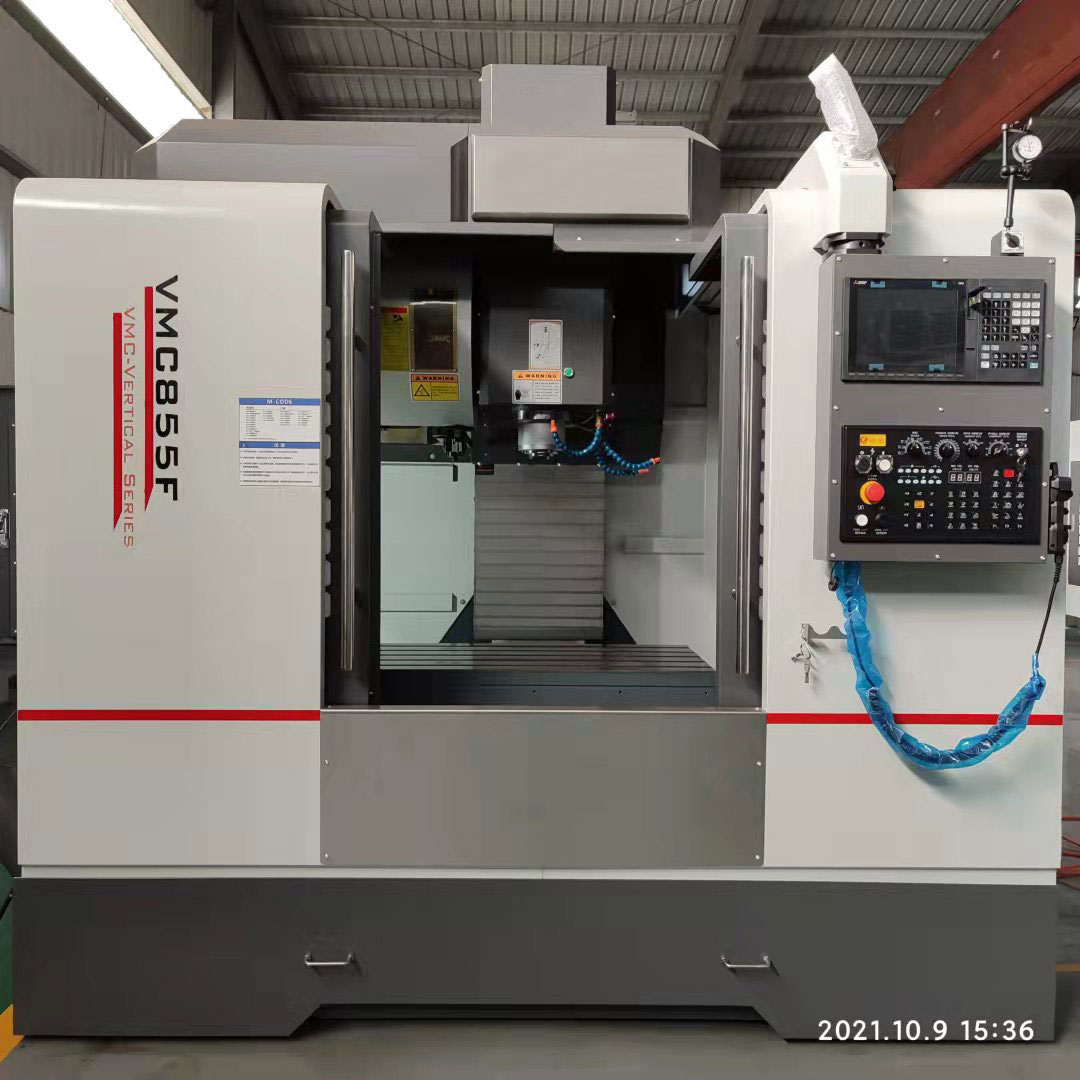

01 CNC Milling Machine VMC855F Vertical Series
01 CNC Milling Machine
VMC855F Vertical Series

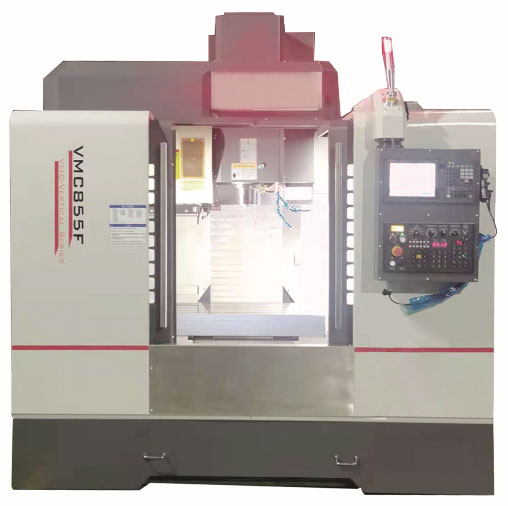

02 CNC Milling Machine VMC855F
02 CNC Milling Machine
VMC855F

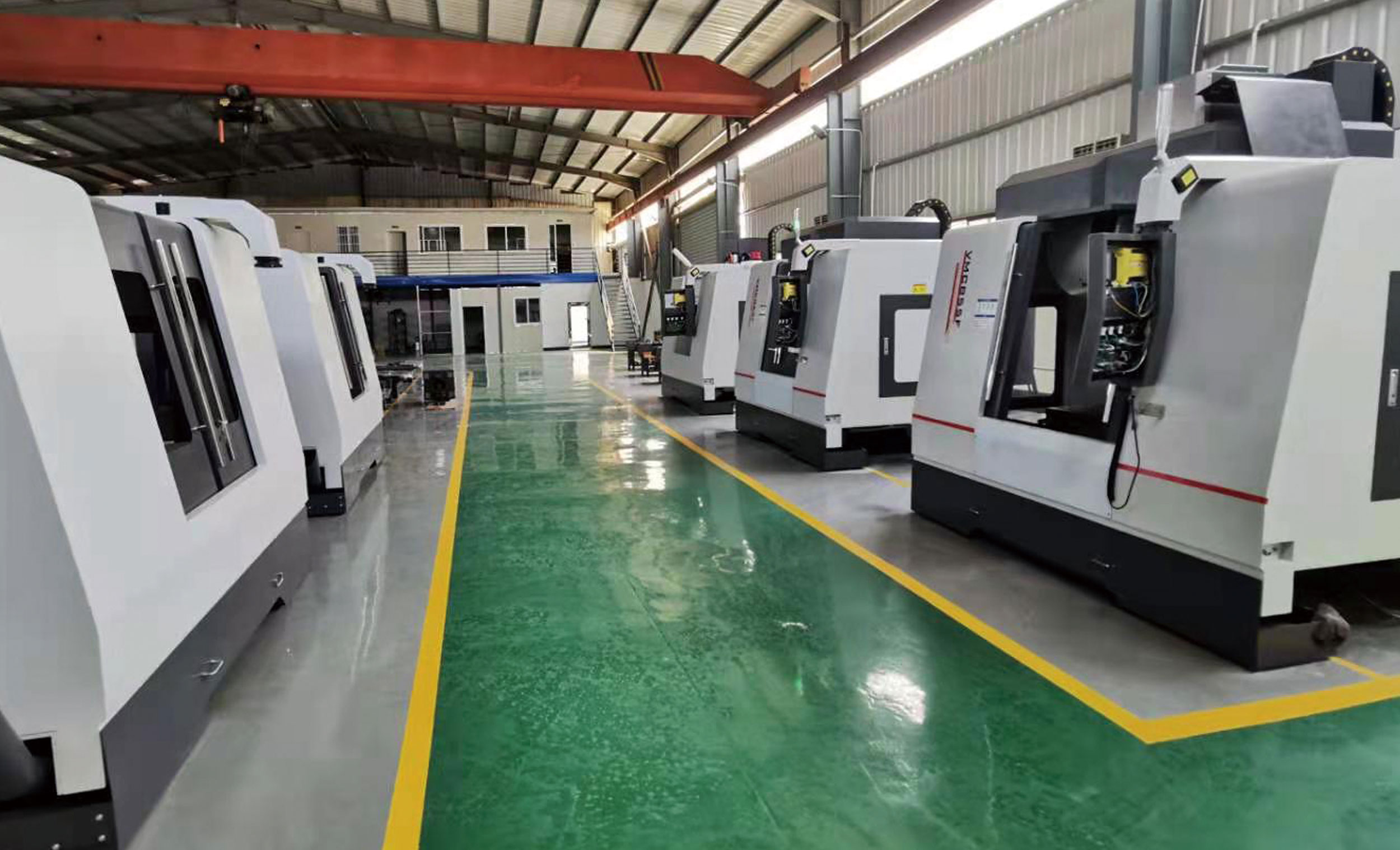

03 CNC Milling Machines
03 CNC Milling Machines
-
Machine Specifications and Main Technical Parameters
Project Unit VMC855F VMC1160 VMC1270
Workbench area (length x width) mm 1000x550 1200x600 1300x650
T-slot size mm 5x18x100 5x18x100 5x18x100
Maximum load-bearing capacity of worktable kgf 600 1200 1200
Stroke
X/Y/Z axis stroke mm 850/550/550 1100/600/600 1200/700/700
Distance from spindle center to column guide surface mm 550 690 730
Distance from spindle end to worktable mm 150-700 135-765 150-850
Spindle hole taper   BT40 BT40 BT40
Spindle speed range rpm 50-10000 8000 8000
Main motor model   B118/12000-B SJ-DG11/120 BII 15/8000-B
Servo main motor rated power kW 7.5 11 11
Servo main motor 30 minutes locked-rotor power kW 11 15 15
Servo main motor rated output torque kW 35.8 52.5 52.5
Feed
X/Y axis feed motor model   BISC 12/3000 HG303BS-D48 BIS 30/2000
Z axis feed motor model   BIS 22/3000-B HG303BS-D48 BIS 30/2000
X/Y/Z axis feed motor maximum speed rpm 3000 3000 2000
X/Y/Z axis feed motor rated power kW 1.8/1.8/3.0 3.0/3.0/3.0 3.0/3.0/3.0
X/Y/Z axis rapid movement m/min 48/48/36 36/36/20 30/30/30
Cutting feed rate mm/min 10000 8000 8000
Tool magazine type   Manipulator Manipulator Manipulator
Tool magazine capacity pcs 24 24 24
Maximum tool diameter of full tool mm 80 80 80
Maximum tool diameter of adjacent empty tool mm 125 125 125
Maximum allowable tool weight kgs 7 7 7
Maximum allowable length of tool mm 300 300 300
Tool holder standard   MSA403 BT40 MSA403 BT40 MSA403 BT40
Tool change time (tool to tool) s 2 2 2
Knife selection method   Forward and Reverse
Free Choice of Knife
Forward and Reverse
Free Choice of Knife
Forward and Reverse
Free Choice of Knife
Power Source
Total electrical capacity of machine tool kVA 20 20 20
Cooling pump flow L/min 40 40 40
Compressed air for machine tools kgf 6~8 6~8 6~8
Power requirements   380V±10%, 50Hz 380V±10%, 50Hz 380V±10%, 50Hz
Machine size mm 2720x2355x2810   3800x3200x3300
Machine weight (approximately) kgs 5800 6200 7500

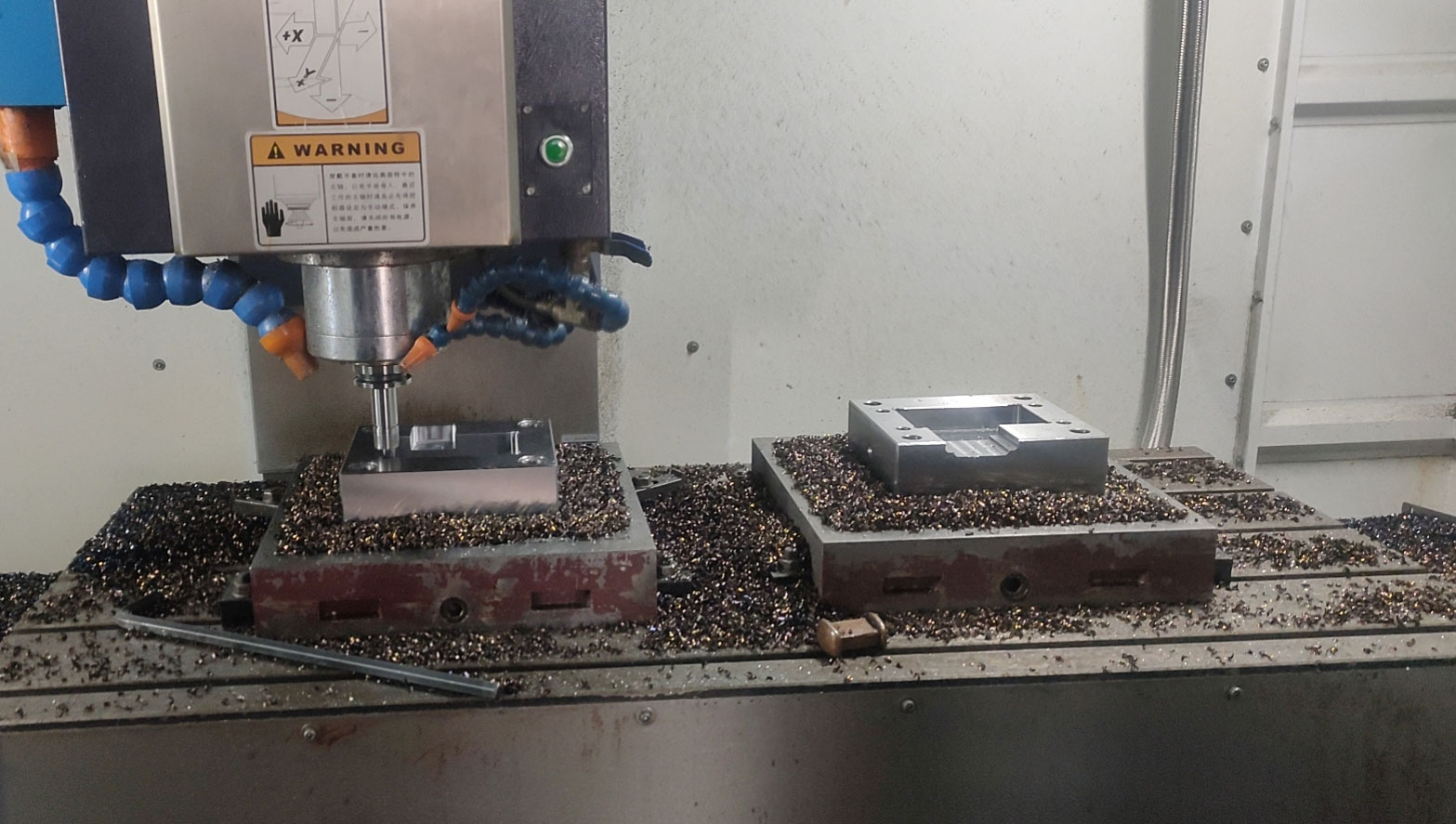

04 CNC Milling Machine VMC855F Vertical Series Milling
04 CNC Milling Machine VMC855F
Vertical Series Milling

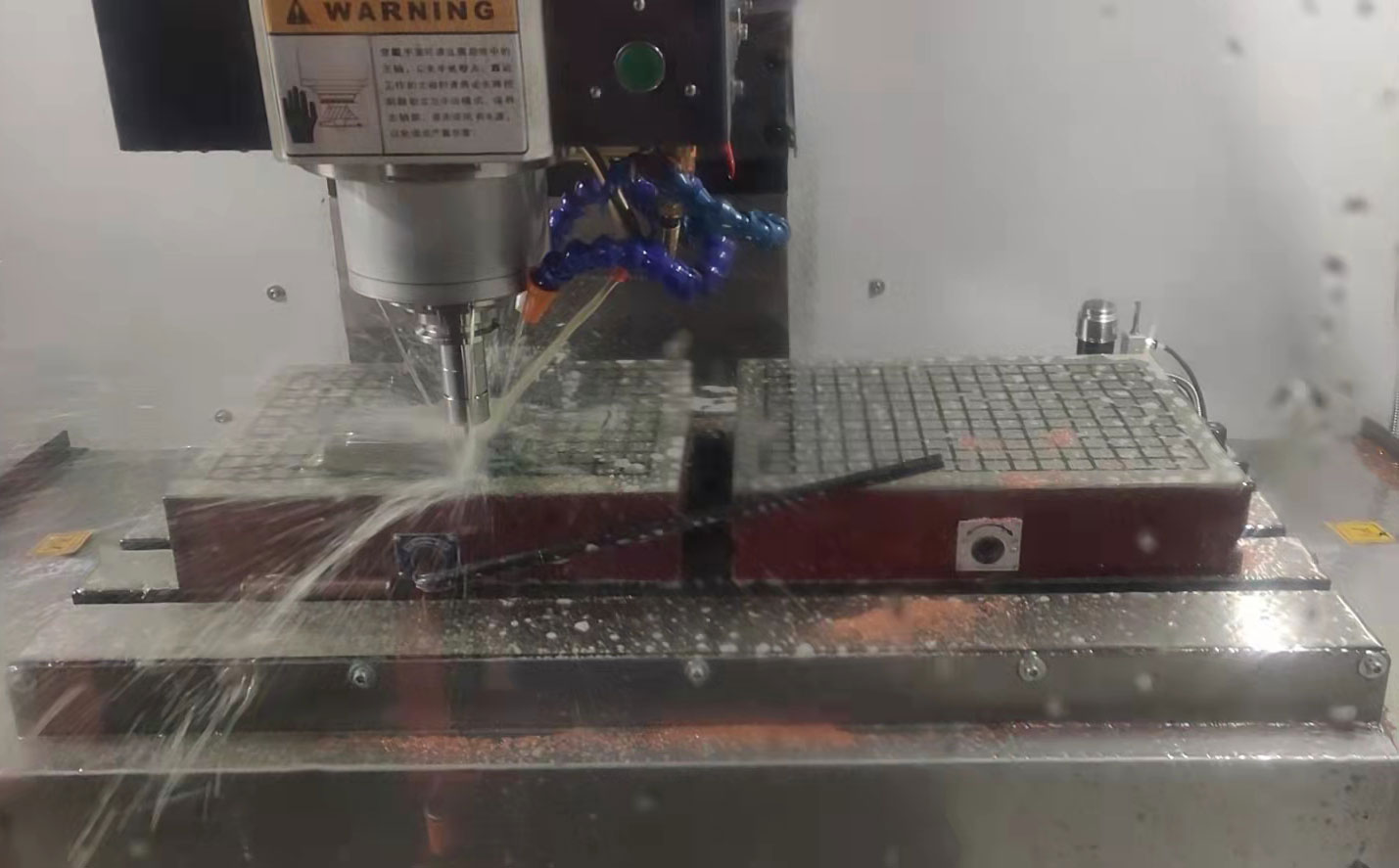

05 CNC Milling Machine VMC855F Vertical Series Milling Cooling
05 CNC Milling Machine VMC855F
Vertical Series Milling Cooling

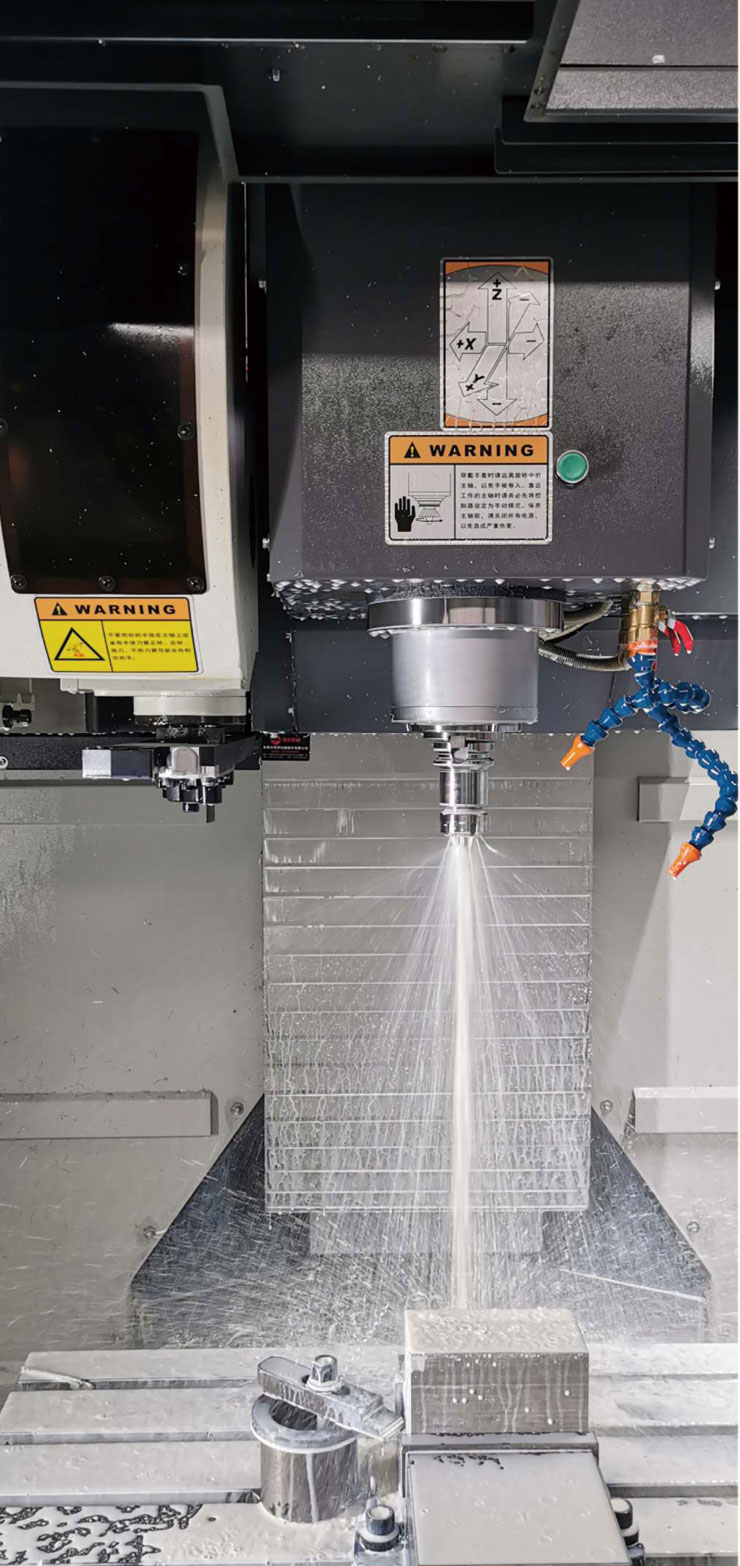

06 Working Status of CNC Milling Machines
06 Working Status of
CNC Milling Machines
07 Bed Casting of CNC Milling Machines
07 Bed Casting of
CNC Milling Machines

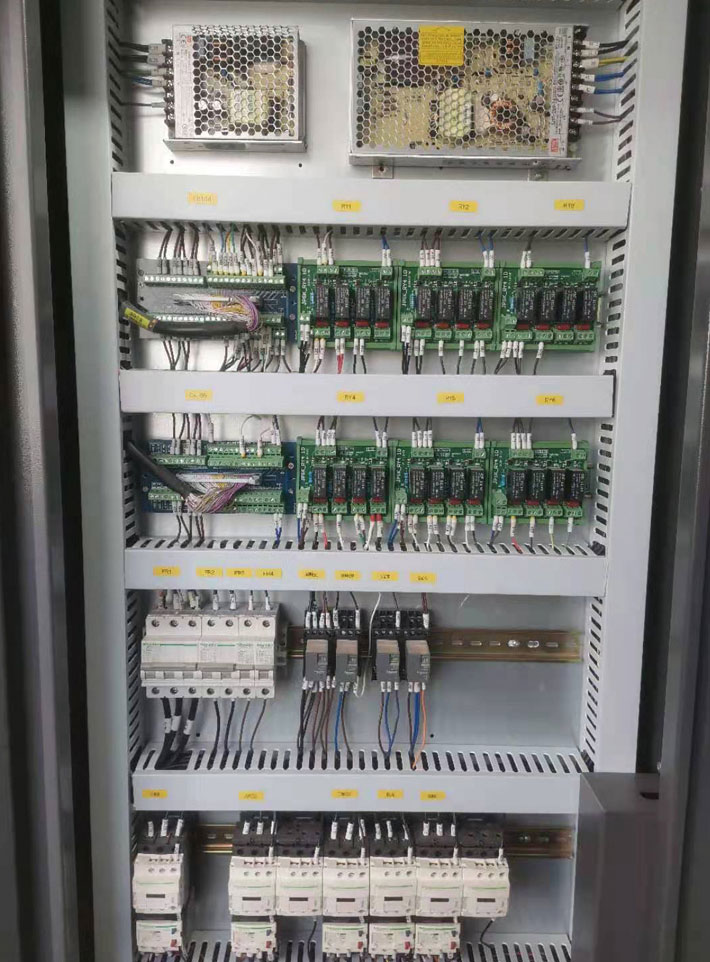

08 Electric Control Cabinet of CNC Milling Machines
08 Electric Control Cabinet of
CNC Milling Machines

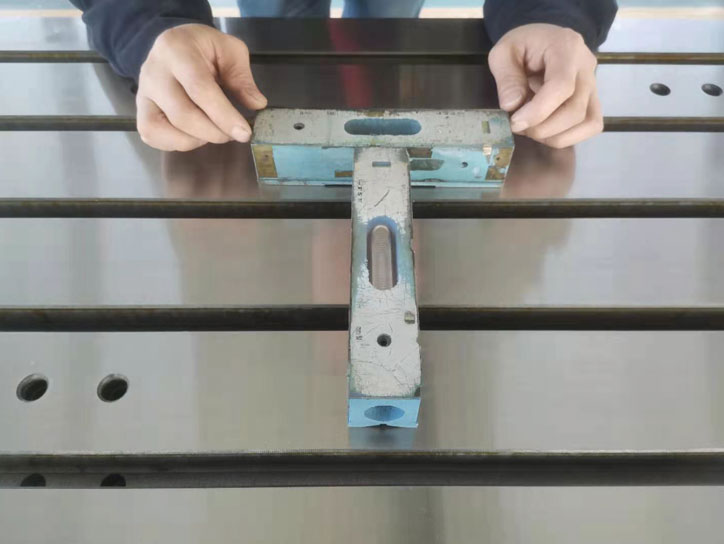

09 Production Process of CNC Milling Machines 1
09 Production Process of
CNC Milling Machines 1

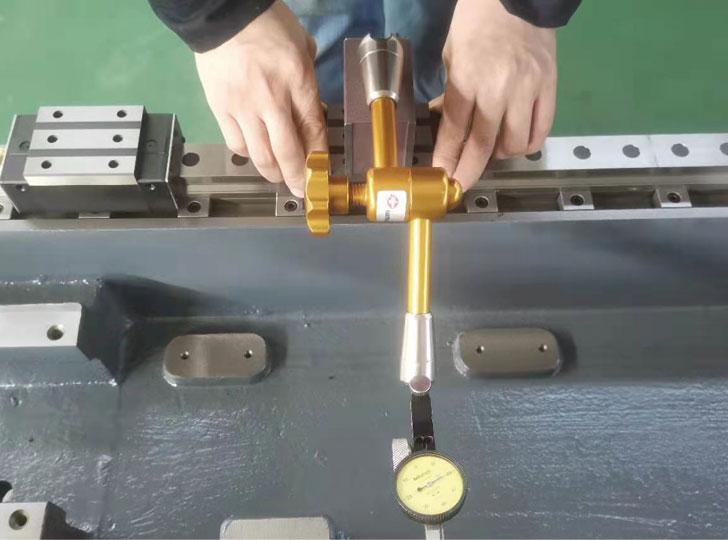

10 Production Process of CNC Milling Machines 2
10 Production Process of
CNC Milling Machines 2

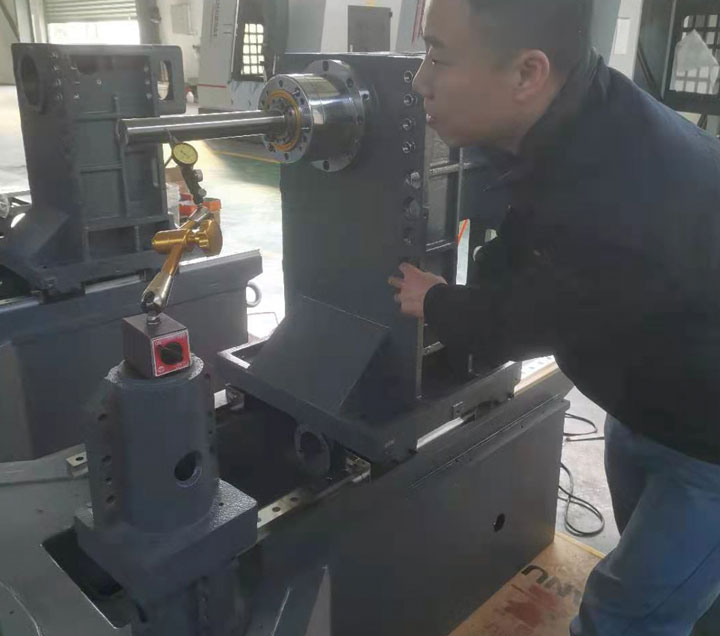

11 Production Process of CNC Milling Machines 3
11 Production Process of
CNC Milling Machines 3

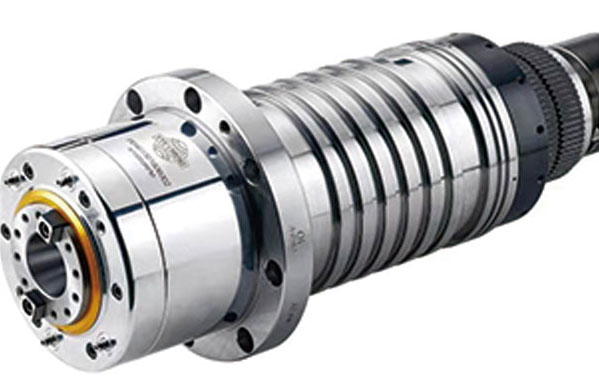

12 Main Spare Parts of CNC Milling Machines Spindle from Taiwan China
12 Main Spare Parts of
CNC Milling Machines
Spindle from Taiwan China

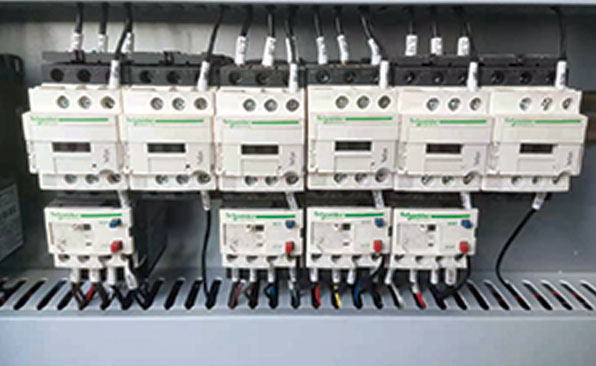

13 Main Spare Parts of CNC Milling Machines Schneider Electrics
13 Main Spare Parts of
CNC Milling Machines
Schneider Electrics

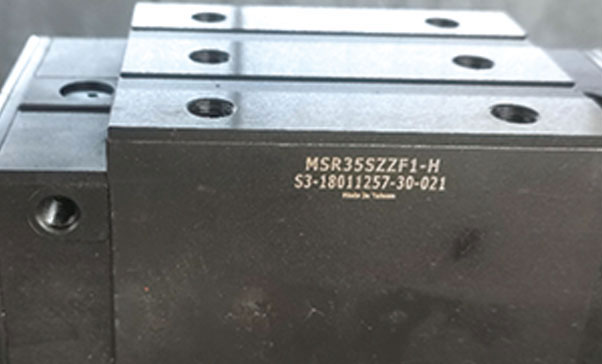

14 Main Spare Parts of CNC Milling Machines Ball Linear Guide from Taiwan China
14 Main Spare Parts of
CNC Milling Machines
Ball Linear Guide from Taiwan China

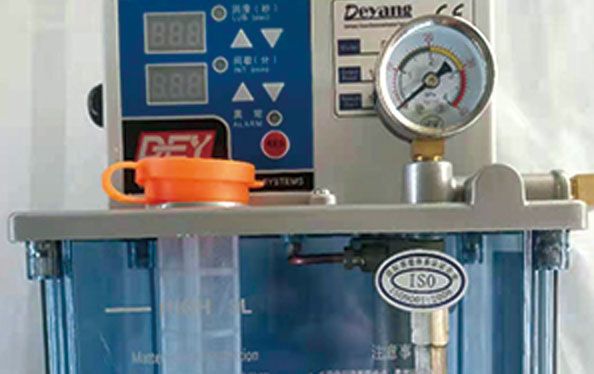

15 Main Spare Parts of CNC Milling Machines Joint Venture Oil Pump
15 Main Spare Parts of
CNC Milling Machines
Joint Venture Oil Pump

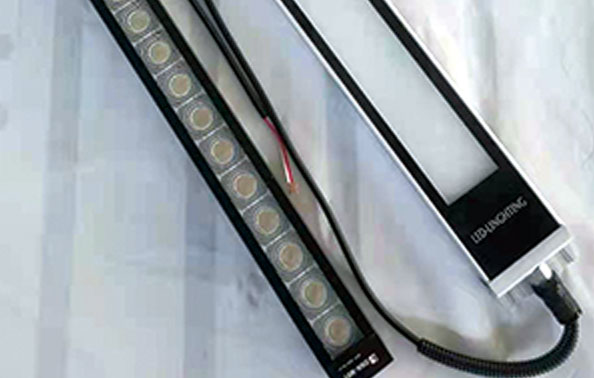

16 Main Spare Parts of CNC Milling Machines Imported LED Lighting
16 Main Spare Parts of
CNC Milling Machines
Imported LED Lighting

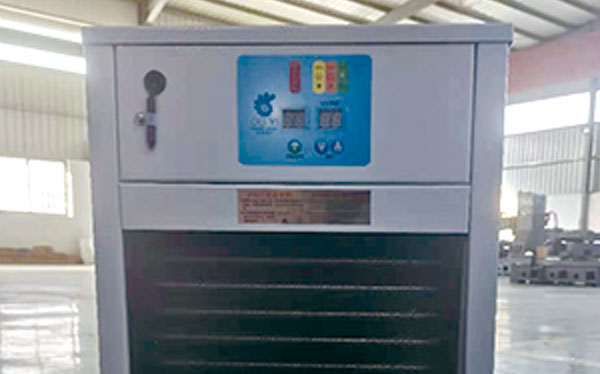

17 Main Spare Parts of CNC Milling Machines Oil Cooler from Taiwan China
17 Main Spare Parts of
CNC Milling Machines
Oil Cooler from Taiwan China

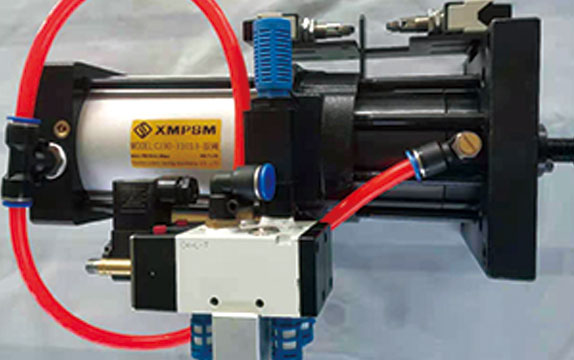

18 Main Spare Parts of CNC Milling Machines Joint Venture Knife Cylinder
18 Main Spare Parts of
CNC Milling Machines
Joint Venture Knife Cylinder
19 Main Spare Parts of CNC Milling Machines High Pressure Water Pump
19 Main Spare Parts of
CNC Milling Machines
High Pressure Water Pump

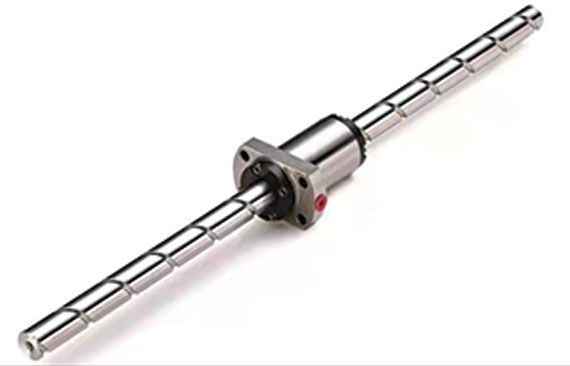

20 Main Spare Parts of CNC Milling Machines Rolling Ball Rod from Taiwan China
20 Main Spare Parts of
CNC Milling Machines
Rolling Ball Rod from Taiwan China

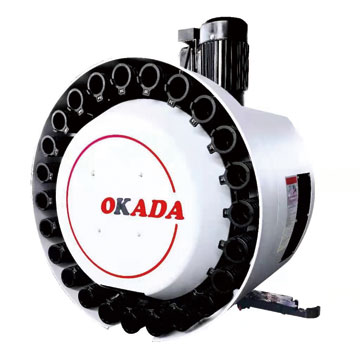

21 Main Spare Parts of CNC Milling Machines Tool Library from Taiwan China
21 Main Spare Parts of
CNC Milling Machines
Tool Library from Taiwan China

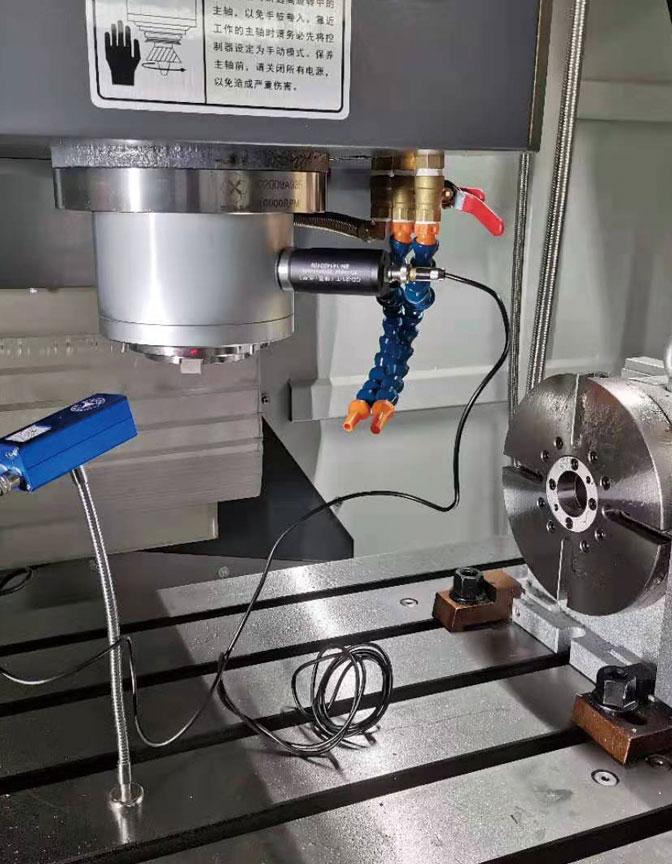

22 Testing Equipments for CNC Milling Machines
22 Testing Equipments for
CNC Milling Machines

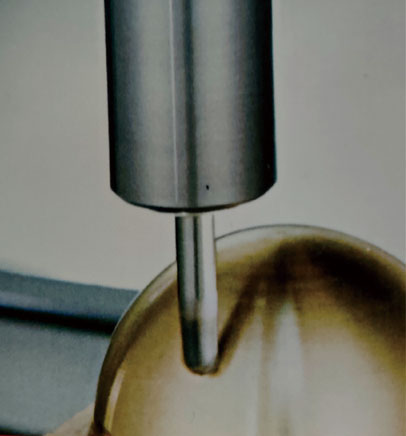

23 Testing Equipments for CNC Milling Machines
23 Testing Equipments for
CNC Milling Machines

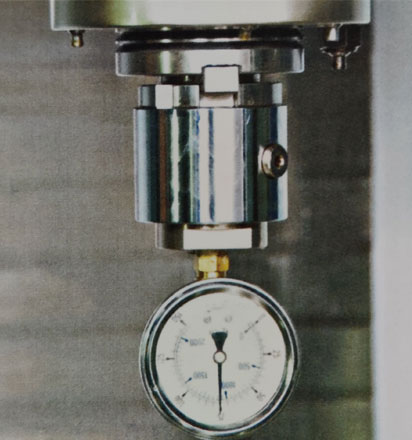

24 Testing Equipments for CNC Milling Machines
24 Testing Equipments for
CNC Milling Machines

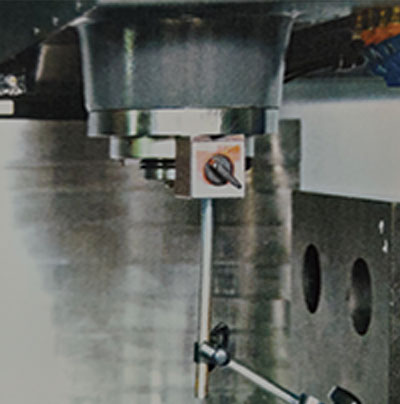

25 Testing Equipments for CNC Milling Machines
25 Testing Equipments for
CNC Milling Machines
26 Testing Equipments for CNC Milling Machines
26 Testing Equipments for
CNC Milling Machines

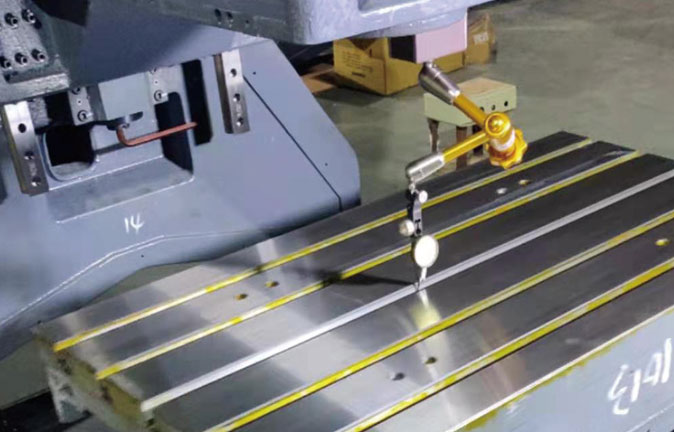

27 Testing Equipments for CNC Milling Machines
27 Testing Equipments for
CNC Milling Machines

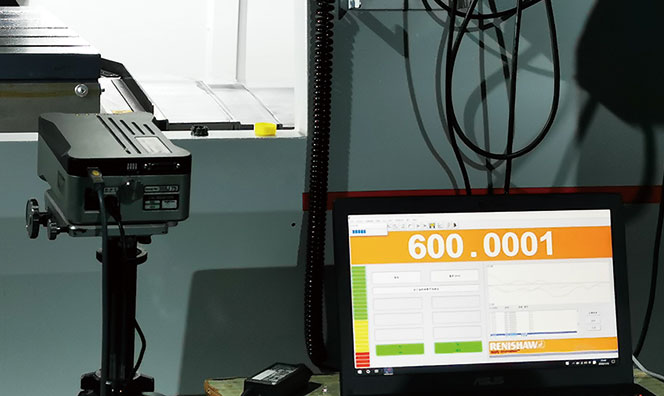

28 Testing Equipments for CNC Milling Machines
28 Testing Equipments for
CNC Milling Machines
