Mimpex Mould, China introduces China origin Five Axis High Speed Vertical CNC Machining Center, which could process complex molding surfaces in various industries.

Contact Mimpex Mould, China

模具进出口网
Contact Mimpex Mould

Five Axis High Speed Vertical Machining Center
VMC750F
Worktable Size: 420mm
X Axis Stroke: 510mm
Y Axis Stroke: 510mm
Z Axis Stroke: 560mm
A Axis Stroke: -5~105 Degrees
C Axis Stroke: 0~360 Degrees
T Slot: 8-14mm
Distance between Mainshaft End Plane and Table Top: 0-575mm
Fast Motion Speed: X, Y 24m/min, Z 20m/min, A, C 10r/min
Cutting Feed Speed: 3-8000mm/min
Mainshaft Conic Hole: 7:24 No:40
Mainshaft Revolving Speed Range: 35-8000r/min
Mainshaft Motor Power: 5.5/7.5KW
Tool Magazine Capacity: 16 or 21 pcs
Tool Selection Mode:Arbitrary Selection
Tool Changing Time: 6 Seconds
Maximum Tool D*L: 80mm*305mm
Tool Handle Model: JT40/BT40
Overall Sizes: 2840mm*2500mm*2950mm
Weight: 6000Kgs

Five Axis High Speed Vertical Machining Center

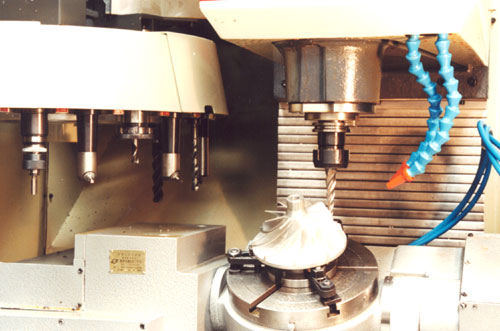

VMC750F Machining

Five Axis High Speed Vertical Machining Center XKH1600
Five Axis High Speed Vertical Machining Center
XKH1600
Worktable Size: 1800*500mm
X Axis Stroke: 1650mm
Y Axis Stroke: 450mm
Z Axis Stroke: 400mm
A Axis Stroke: 360 Degrees
C Axis Stroke: +/-40 Degrees
Fast Motion Speed: X, Y 24m/min, Z 24m/min
A Axis Feed Speed 140rpm
B Aixs Feed Speed 15rpm
Mainshaft Revolving Speed: 10000rpm
